To keep your business ahead in the competition, maintaining high quality and accuracy is essential for the manufacturing industry. One of the most effective tools for ensuring product precision is the coordinate measuring machine. Whether you are producing automotive parts, aerospace components, or medical devices, having the right cmm measurement system can make a significant difference in overall production quality.
But with so many options available, choosing the right coordinate measuring machine for your industry needs can be challenging. This article breaks down the key factors to consider when selecting a CMM that fits your application, budget, and future goals.
Understanding CMM Basics

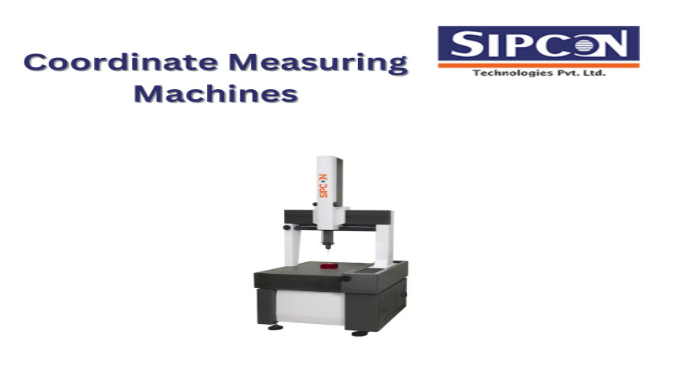

A coordinate measuring machine is used to measure the physical geometries of an object. It works by using a probe that touches or scans the surface of a part to collect data points. These points are then compared to the original design specifications to check for accuracy and tolerance.
CMM measurement is used across a wide range of industries to inspect parts for quality control, reverse engineering, and prototyping. The machines come in different sizes and types, and selecting the right one requires a good understanding of your specific requirements.
Factors to Consider When Choosing a CMM
1. Part Size and Geometry
Start by evaluating the size and shape of the parts you need to measure. If you are inspecting small components like gears or medical devices, a bridge CMM might be sufficient. However, if your parts are large or complex, such as turbine blades or vehicle chassis, you may need a gantry or horizontal arm machine.
The geometry of the part also plays a role. Complex surfaces or deep cavities may require a machine with multi-axis probing or scanning capabilities.
2. Measurement Accuracy and Tolerance
Different industries have different tolerance requirements. For example, aerospace and medical manufacturing demand extremely tight tolerances. In such cases, you’ll need a coordinate measuring machine that offers high precision and stable performance.
CMM measurement accuracy is often affected by the machine’s structure, the probe system, and the environment. Make sure the CMM you choose meets your industry’s accuracy standards.
3. Environment and Space Availability
CMMs require a stable environment to deliver accurate results. Temperature, humidity, and vibration can all impact measurements. Some high-precision machines are designed to work only in climate-controlled rooms, while others are built to operate in shop-floor conditions.
Also, consider the available floor space. Gantry and horizontal arm CMMs need more space than compact bridge models. Portable CMMs are a good choice when space is limited or when flexibility is needed.
4. Automation and Speed
If your production involves high volumes or repetitive inspections, automation can be a big advantage. Look for CMMs that can integrate with robotic arms or offer automatic part loading.
Automated cmm measurement not only speeds up the process but also reduces operator errors and improves consistency.
5. Probing Technology
The type of probe you choose depends on what and how you want to measure. Touch-trigger probes are great for basic measurement, while scanning probes collect more data points and are useful for curved or irregular surfaces.
There are also non-contact probes like lasers and vision sensors, which are useful for delicate or soft materials that should not be touched.
6. Software Capabilities
A coordinate measuring machine is only as effective as the software that drives it. Make sure the CMM software is user-friendly and compatible with your CAD systems. Look for features like automated report generation, offline programming, and real-time data analysis.
The right software will help you get the most out of your cmm measurement system, even if your team has limited technical experience.
7. Budget and Long-Term Value
While cost is an important factor, don’t just go for the cheapest option. A low-cost machine that doesn’t meet your accuracy needs or can’t handle future growth may end up costing more in the long run.
Consider the total cost of ownership, including maintenance, training, and upgrades. Some coordinate measuring machines offer modular designs, which allow you to upgrade later as your needs evolve.
Conclusion
Choosing the right coordinate measuring machine is a critical decision that affects your product quality, inspection speed, and operational efficiency. By carefully considering your part size, accuracy needs, environment, and automation goals, you can select a cmm measurement system that fits both your current production and future growth.
